LASER PART MARKING & ENGRAVING
Fiber laser marking to MIL-STD-130 and ATA Spec 2000 — serialization, 2D data matrix, logos and legends applied in-house so traceability never leaves the building with your parts.
CAP-05
0.001" line
SPECIFICATIONS
| STANDARDS | MIL-STD-130N, ATA Spec 2000, UDI |
|---|---|
| MARK FIELD | 12″ x 12″ flat · rotary for cylindrical |
| LINE WIDTH | 0.001″ minimum |
| MARK TYPES | Anneal, etch, ablate, deep engrave to 0.020″ |
| VERIFICATION | In-line grading, ISO/IEC 29158 reports |
| LEAD TIME | 1–3 days · same day on in-house parts |
Materials we run
TitaniumStainless steelInconelAluminum (bare and anodized)Tool steelCarbideBrassEngineering plastics
TYPICAL USE CASES

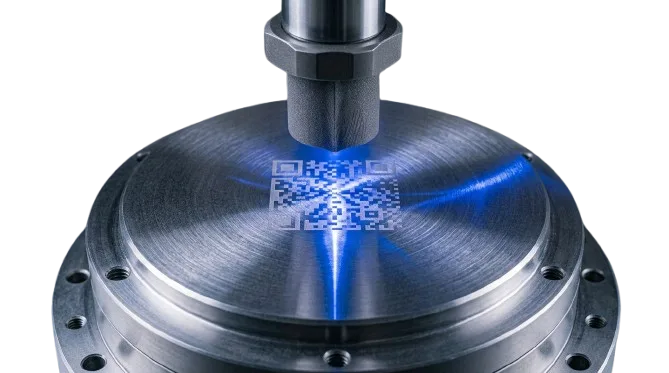

Serialized UID plates
Full MIL-STD-130 nameplates with graded verification.
Medical device UDI
Passivation-safe annealed marks on implantable-grade stock.
Tooling identification
Deep engraved part numbers that survive the life of the die.
GUARANTEE
Quote within 24 hours of receiving your print. Expedite lanes ship in 3 days on qualified jobs.
